2025 Jaylor 51000HD 16"




Get in Touch
Description

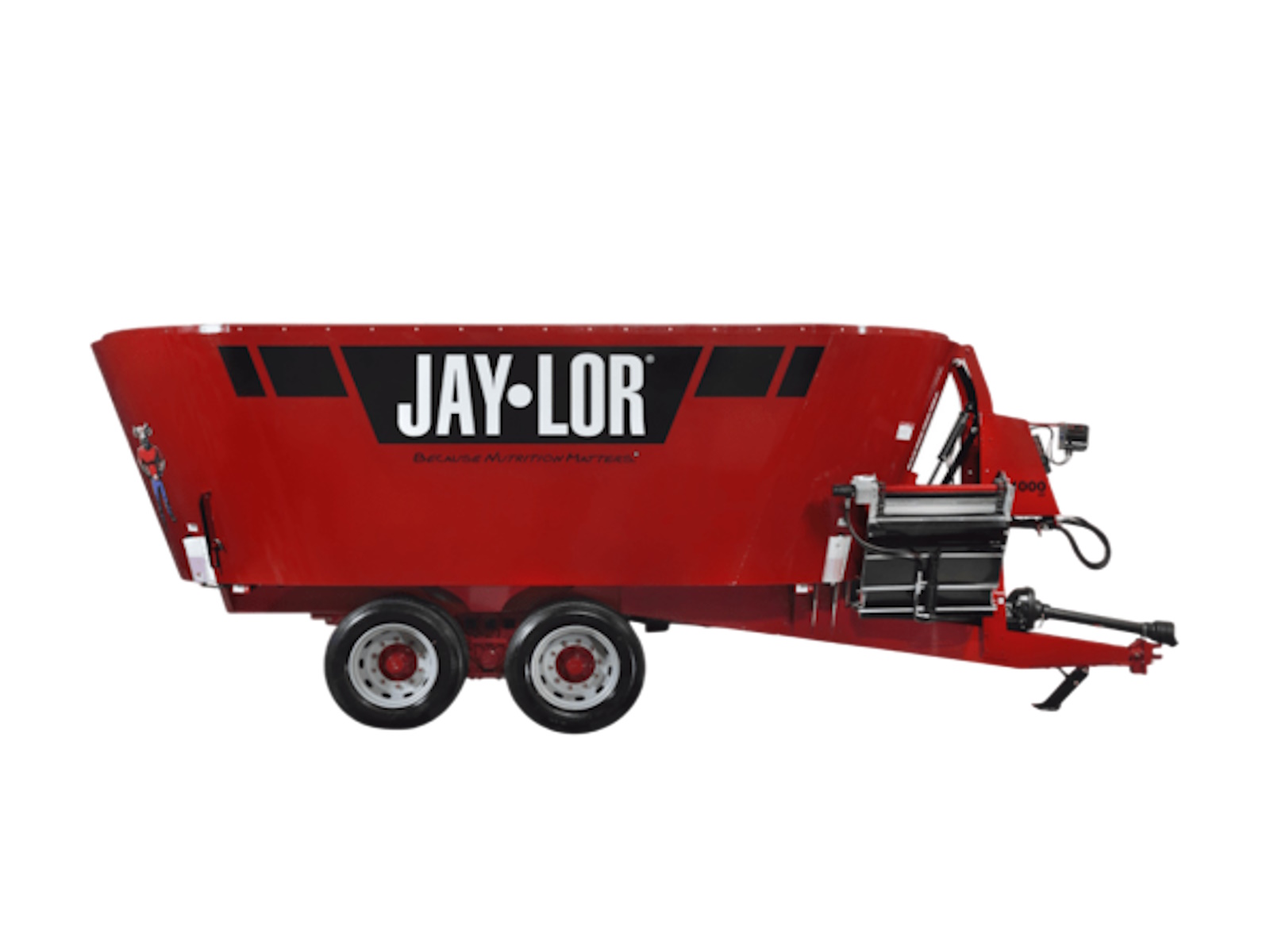

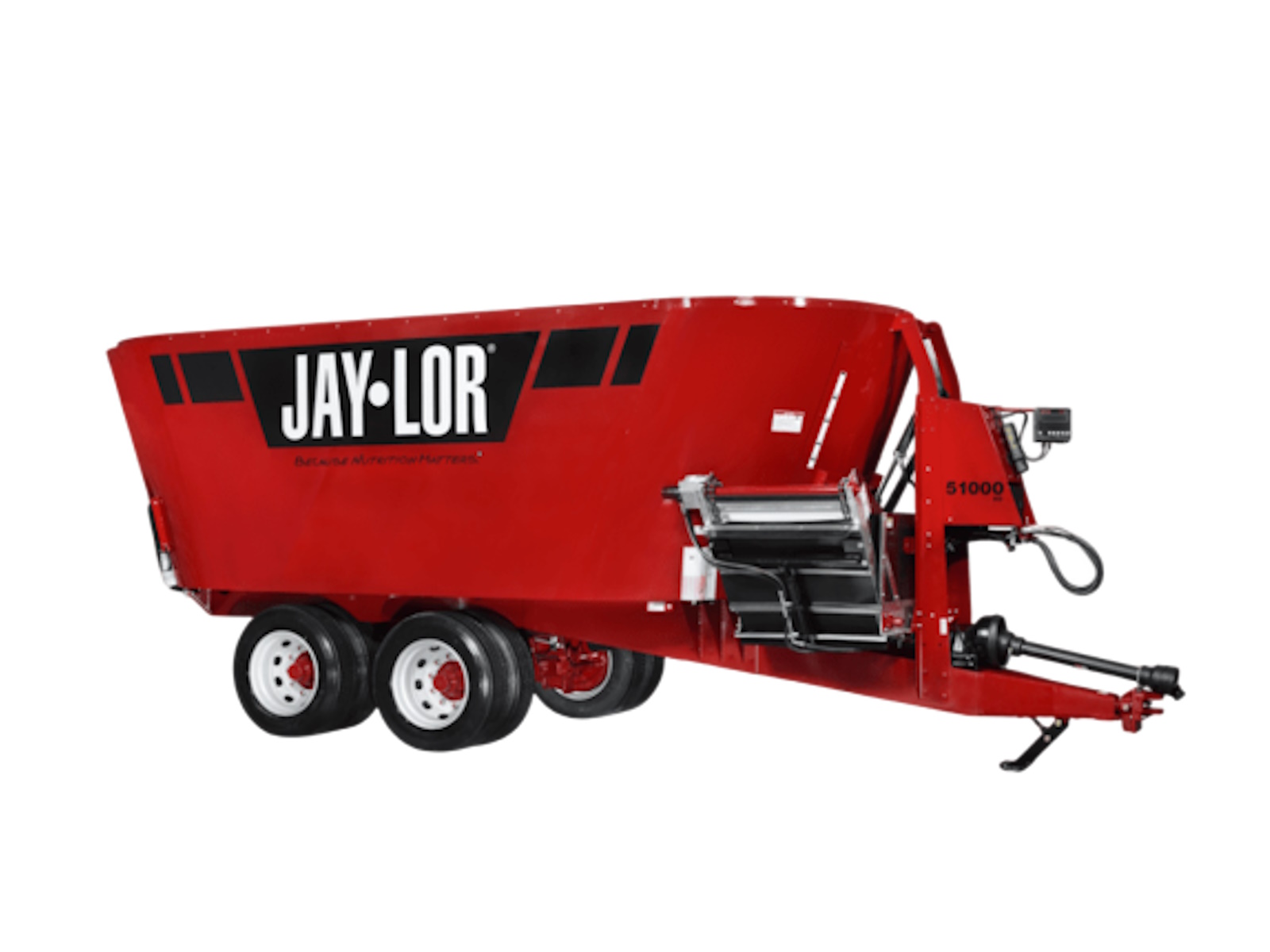

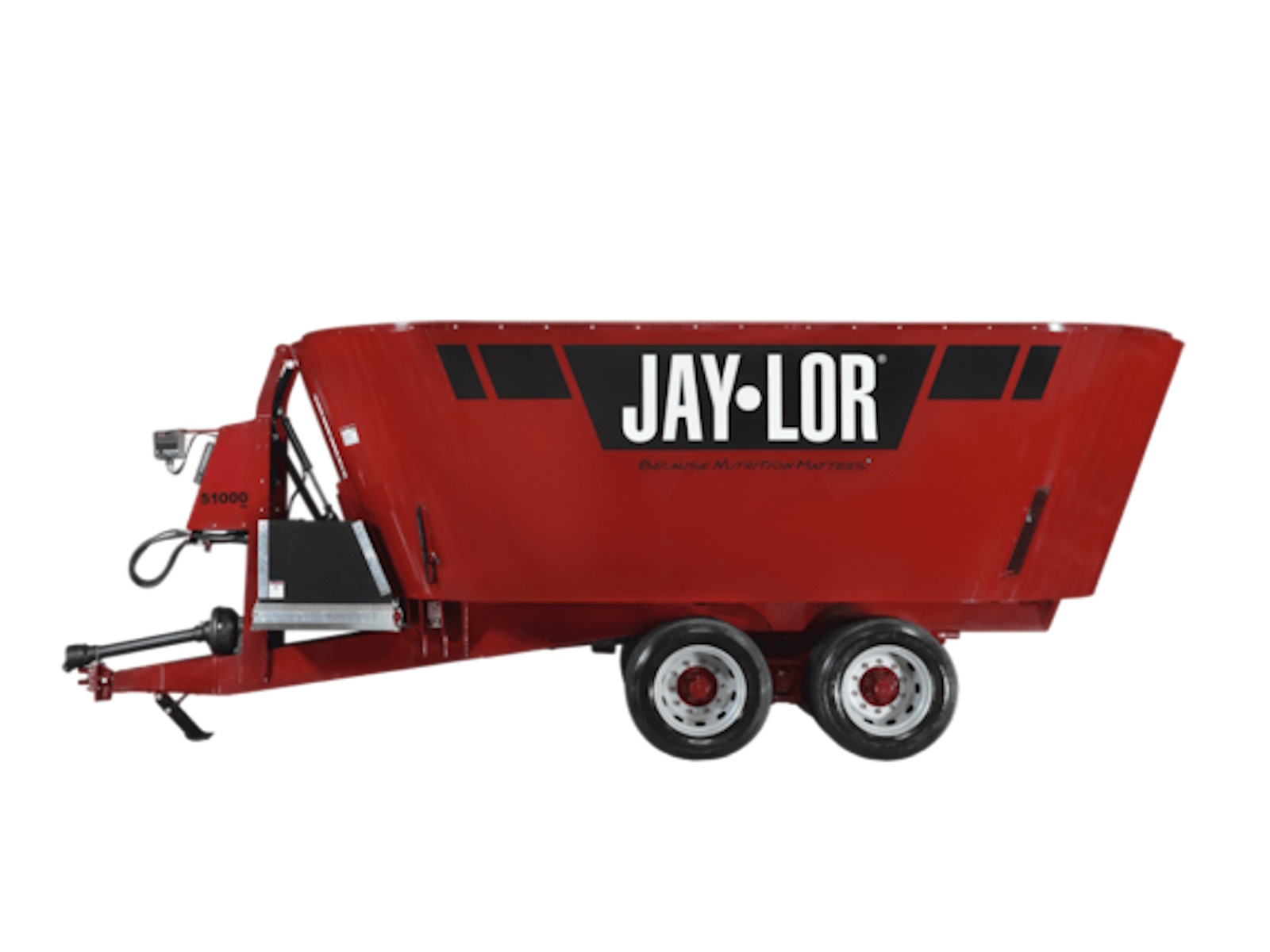

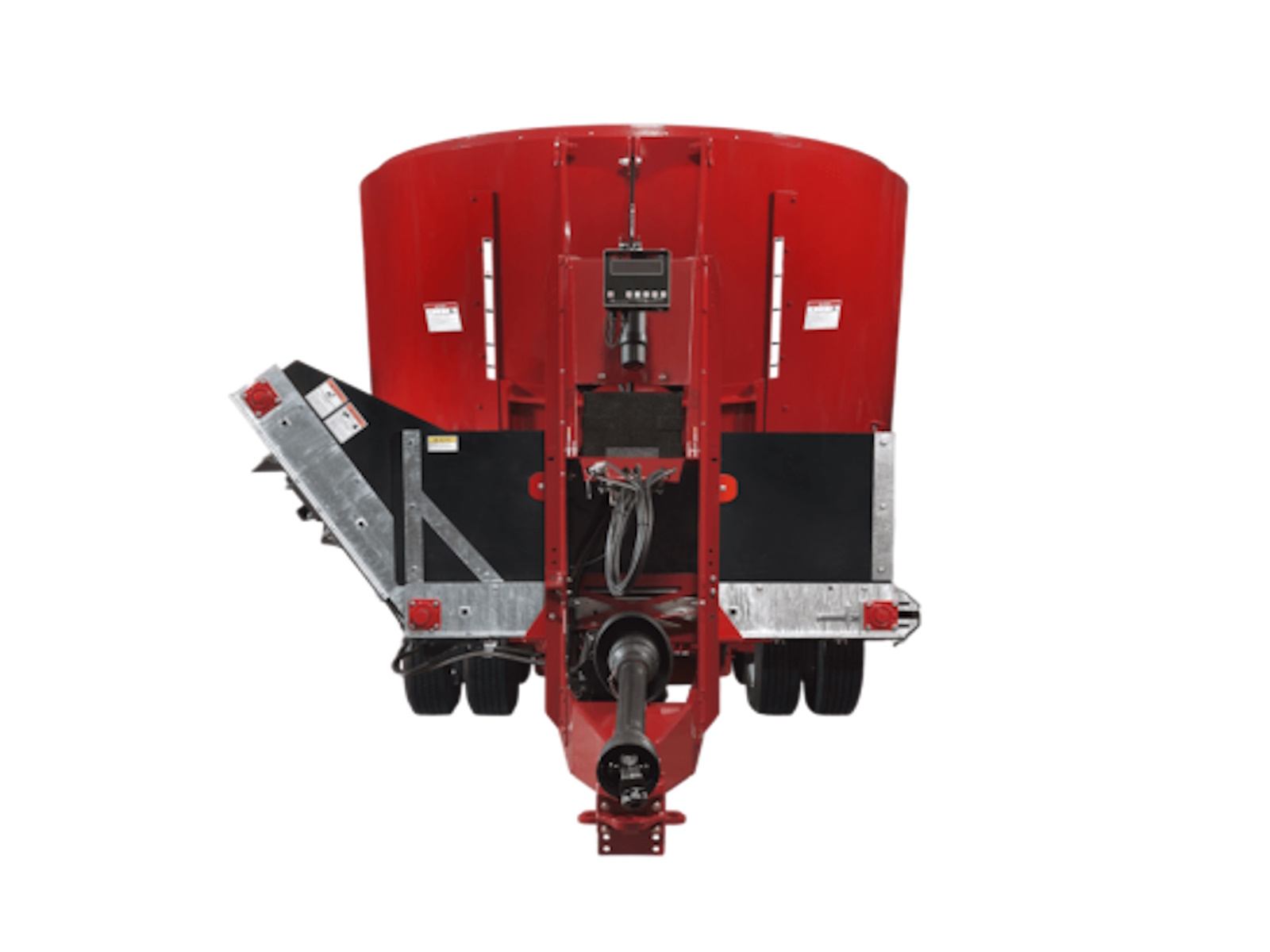

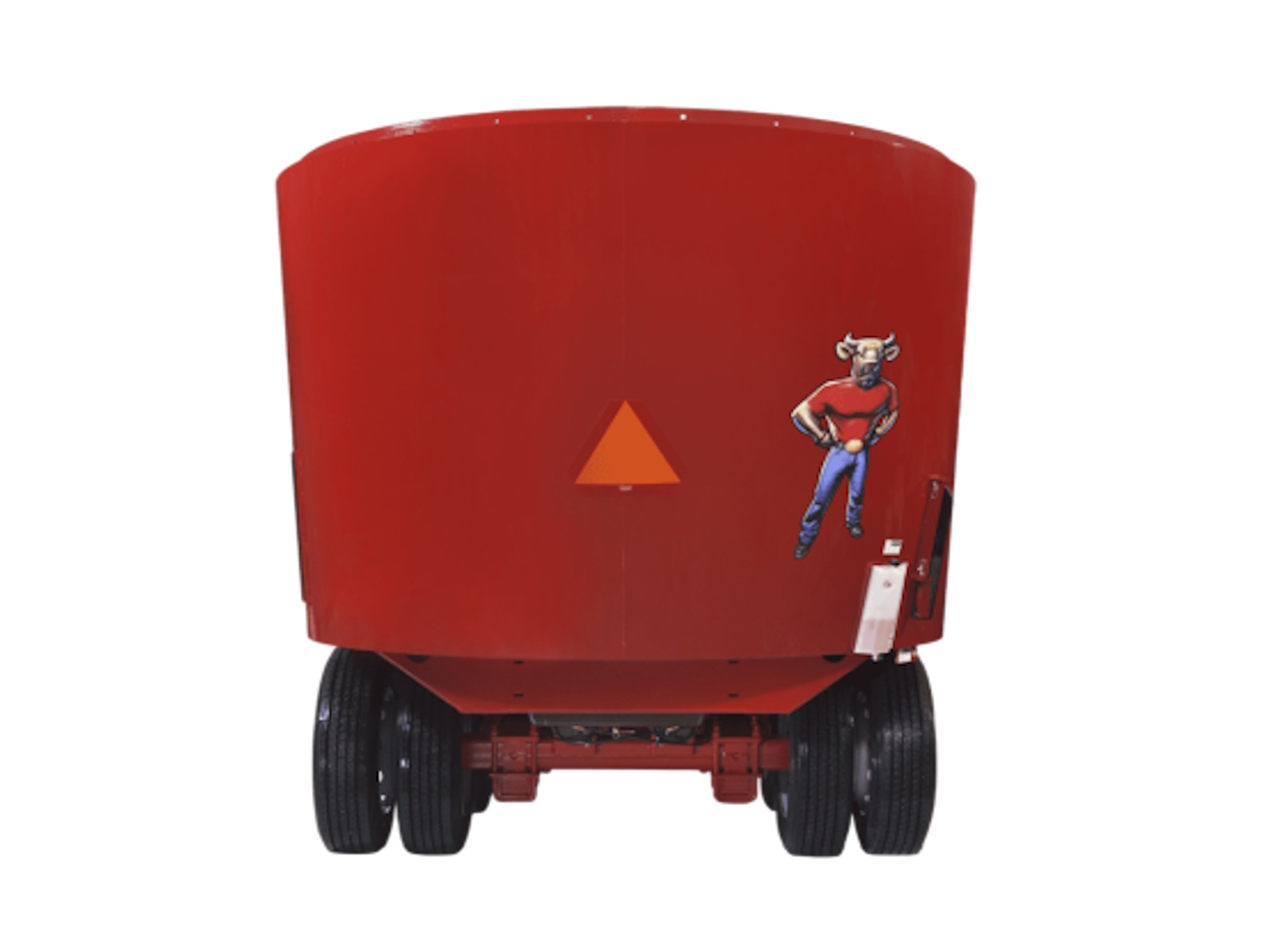

2025 Jaylor 51000HD 16"
Simplicity and durability define the Jaylor 51000HD Twin Auger TMR Mixer — built for trouble-free performance in even the toughest conditions. Designed for ease of use and long-term reliability, this extra-rugged feed mixer wagon features thicker auger flighting, a reinforced floor, and a heavy-duty frame to handle demanding feeding conditions. It processes and mixes up to three 5×6 or four 4×5 round bales per load, handling 4,440 lbs (2,015 kg) of hay equivalent with ease—delivering consistent, high-quality TMR every time.
Features May Include:
- Sloped top Square-Cut Auger
- 5-Point Weigh system with DG500 Indicator
- Heavy Duty Axles, Hubs and Bearings
- Planetary Gearbox
- Heavy Duty Hydraulic Jack
- Shaker Box to Optimize Your Mix
- Rapid Discharge Door with Self-Cleaning Tracks
- Central Greasing Bank
- Galvanized Conveyor for Longevity
- Structurally Reinforced Frame
Info
Industry
Agriculture
Make
Jaylor
Model
51000HD
Trim
16"
Year
2025
MSRP
N/A
Category
Feed / Mixer
Subcategory
Wagon
Specs
Load Capacity
16" Extension: 1095ft³
Length
318 in
Width
Drum: 102 in | Conveyor: 36 in | Door Opening: 42 in
Wheels
Walking Beam
Power/Horsepower
Minimum: 155 HP
Height
117 in
Weight
19800 lbs
Tires
275/70R22.5 (8)
PTO Type
Speed: 1000 RPM
Notes
Auger Speed: 38 RPM | Number Of Knives: 22 | Auger Flighting Thickness: 3/4in | Max Discharge Height: 68 in | Floor Thickness: 3/4in |Drum Wall Thickness: 1/4 in
