    Description

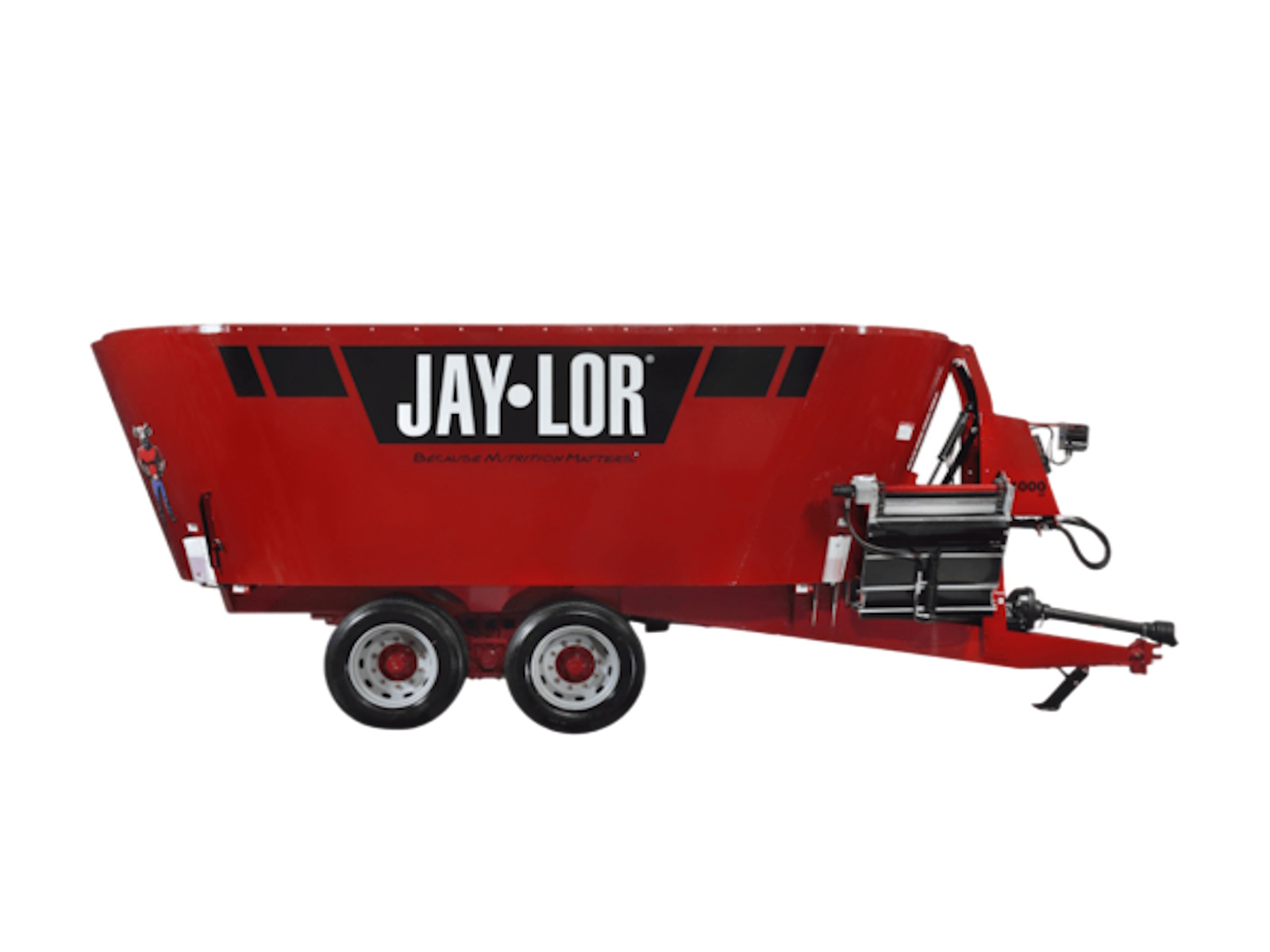

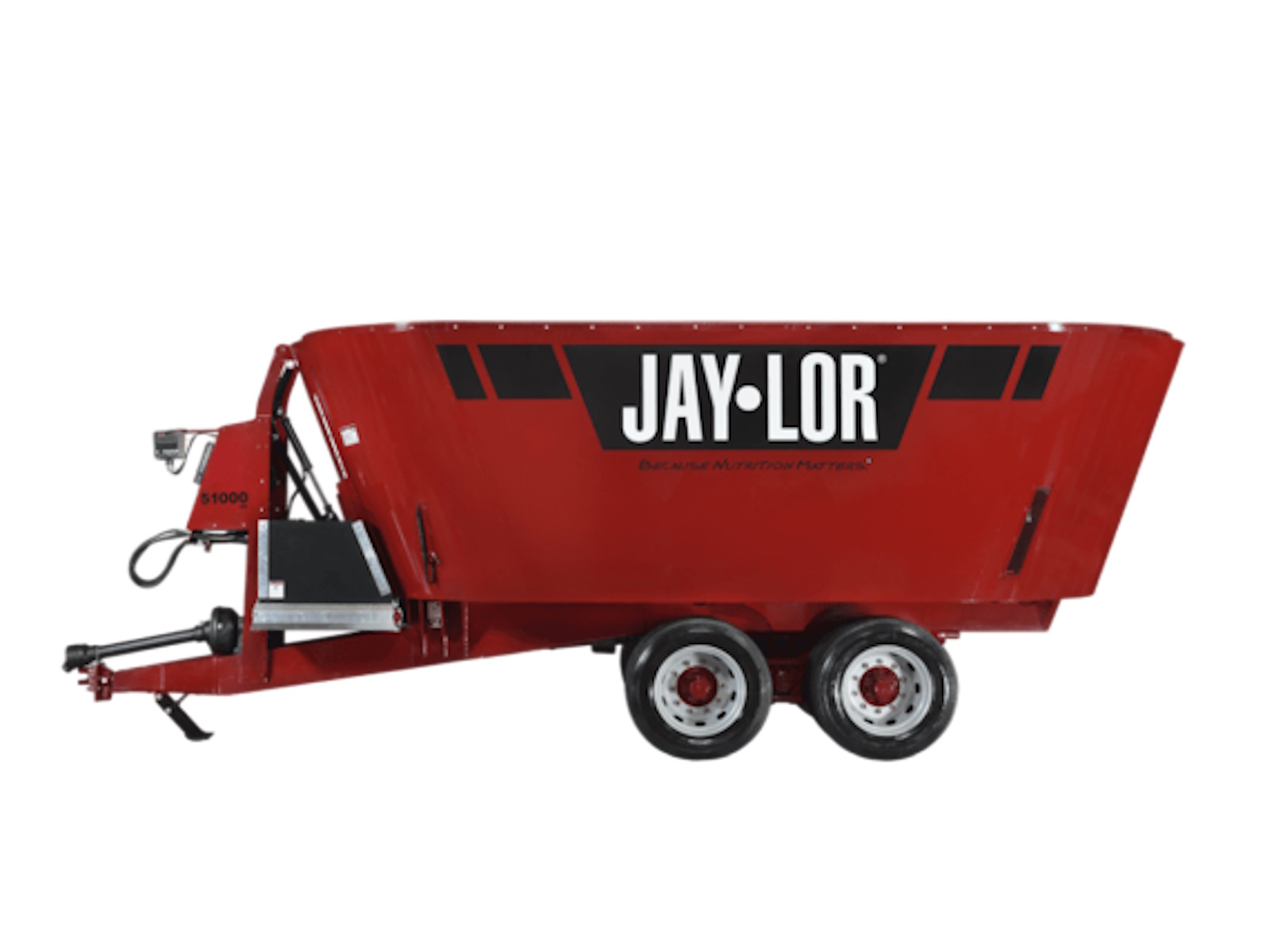

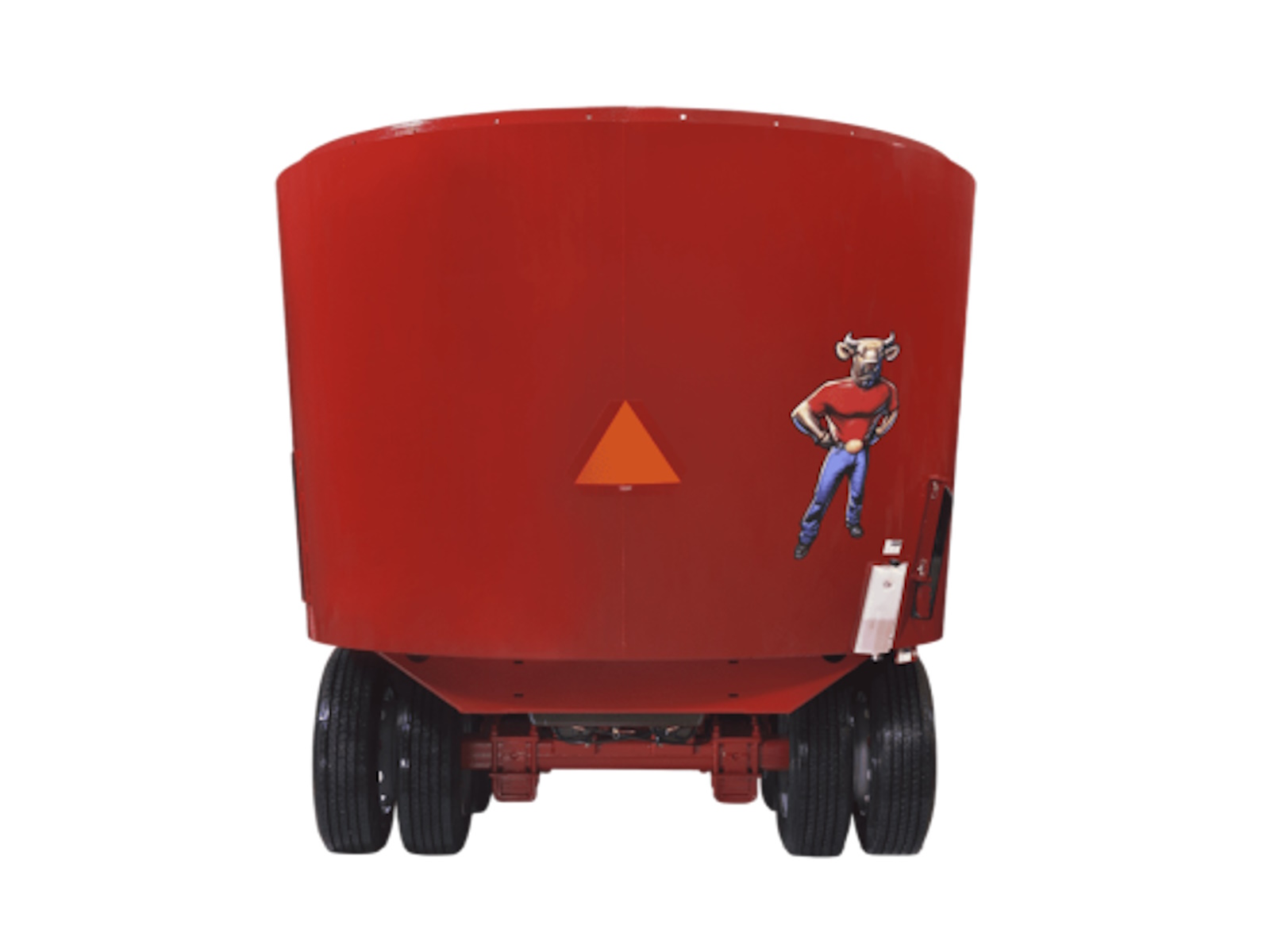

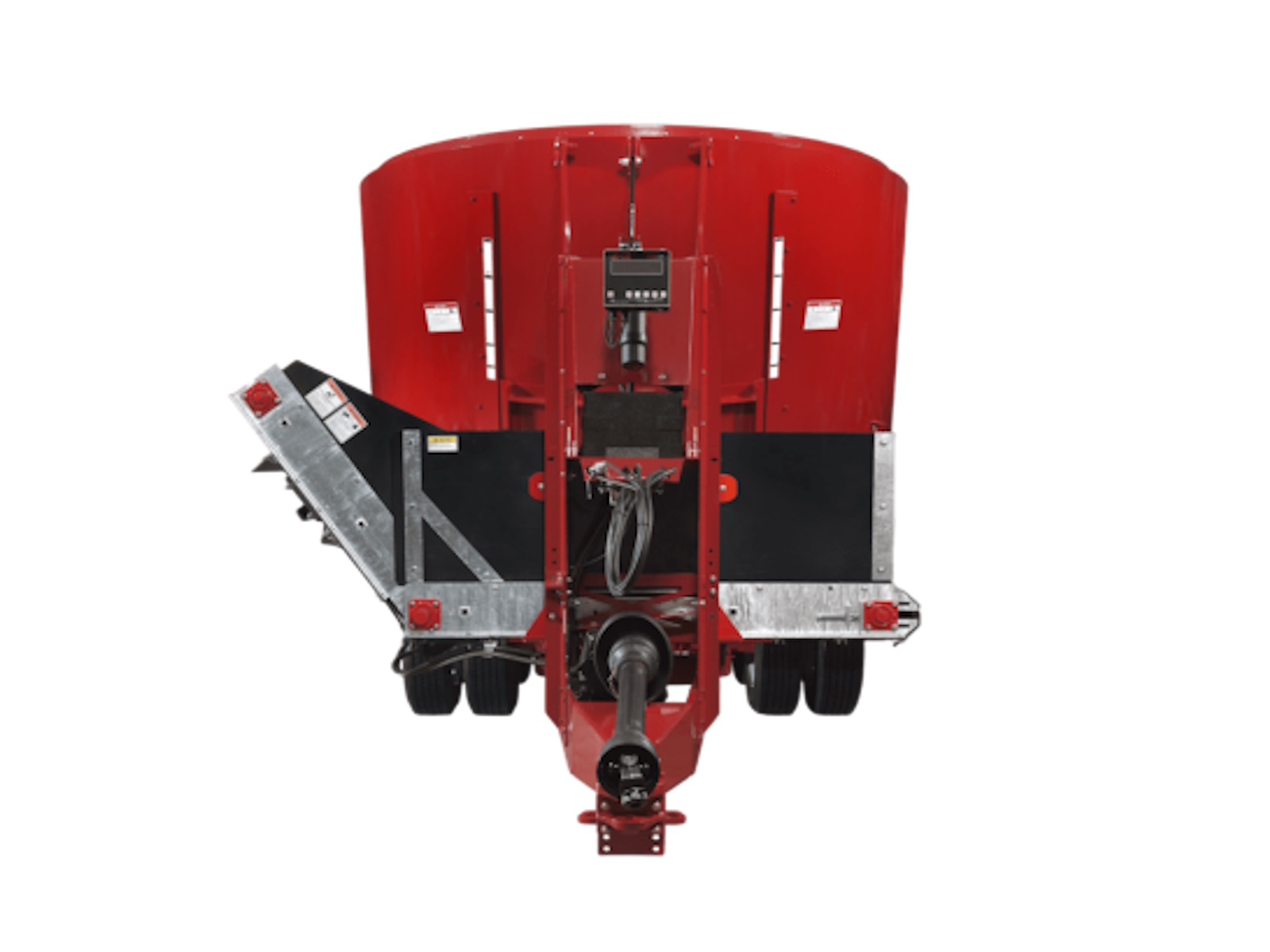

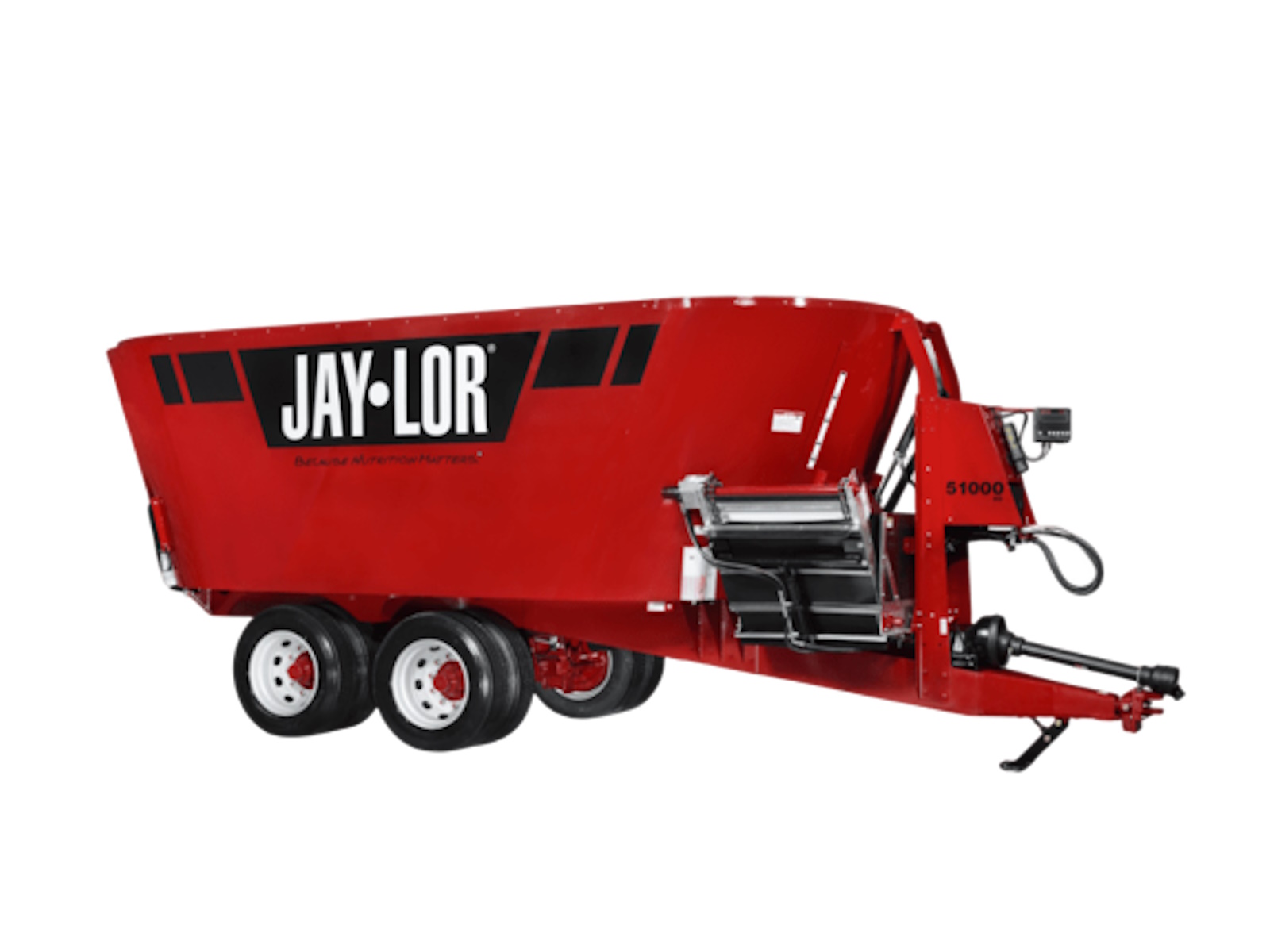

    2025 Jaylor 51000HD 12"

    Simplicity and durability define the Jaylor 51000HD Twin Auger TMR Mixer — built for trouble-free performance in even the toughest conditions. Designed for ease of use and long-term reliability, this extra-rugged feed mixer wagon features thicker auger flighting, a reinforced floor, and a heavy-duty frame to handle demanding feeding conditions. It processes and mixes up to three 5×6 or four 4×5 round bales per load, handling 4,440 lbs (2,015 kg) of hay equivalent with ease—delivering consistent, high-quality TMR every time.

    Features May Include:

    • Sloped top Square-Cut Auger
    • 5-Point Weigh system with DG500 Indicator
    • Heavy Duty Axles, Hubs and Bearings
    • Planetary Gearbox
    • Heavy Duty Hydraulic Jack
    • Shaker Box to Optimize Your Mix
    • Rapid Discharge Door with Self-Cleaning Tracks
    • Central Greasing Bank
    • Galvanized Conveyor for Longevity
    • Structurally Reinforced Frame

    Info

    Industry

    Agriculture

    Make

    Jaylor

    Model

    51000HD

    Trim

    12"

    Year

    2025

    MSRP

    N/A

    Category

    Feed / Mixer

    Subcategory

    Wagon


    Specs

    Load Capacity

    12" Extension: 1045ft³

    Length

    318 in

    Width

    Drum: 102 in | Conveyor: 36 in | Door Opening: 42 in

    Wheels

    Walking Beam

    Power/Horsepower

    Minimum: 155 HP

    Height

    117 in

    Weight

    19800 lbs

    Tires

    275/70R22.5 (8)

    PTO Type

    Speed: 1000 RPM

    Notes

    Auger Speed: 38 RPM | Number Of Knives: 22 | Auger Flighting Thickness: 3/4in | Max Discharge Height: 68 in | Floor Thickness: 3/4in |Drum Wall Thickness: 1/4 in
